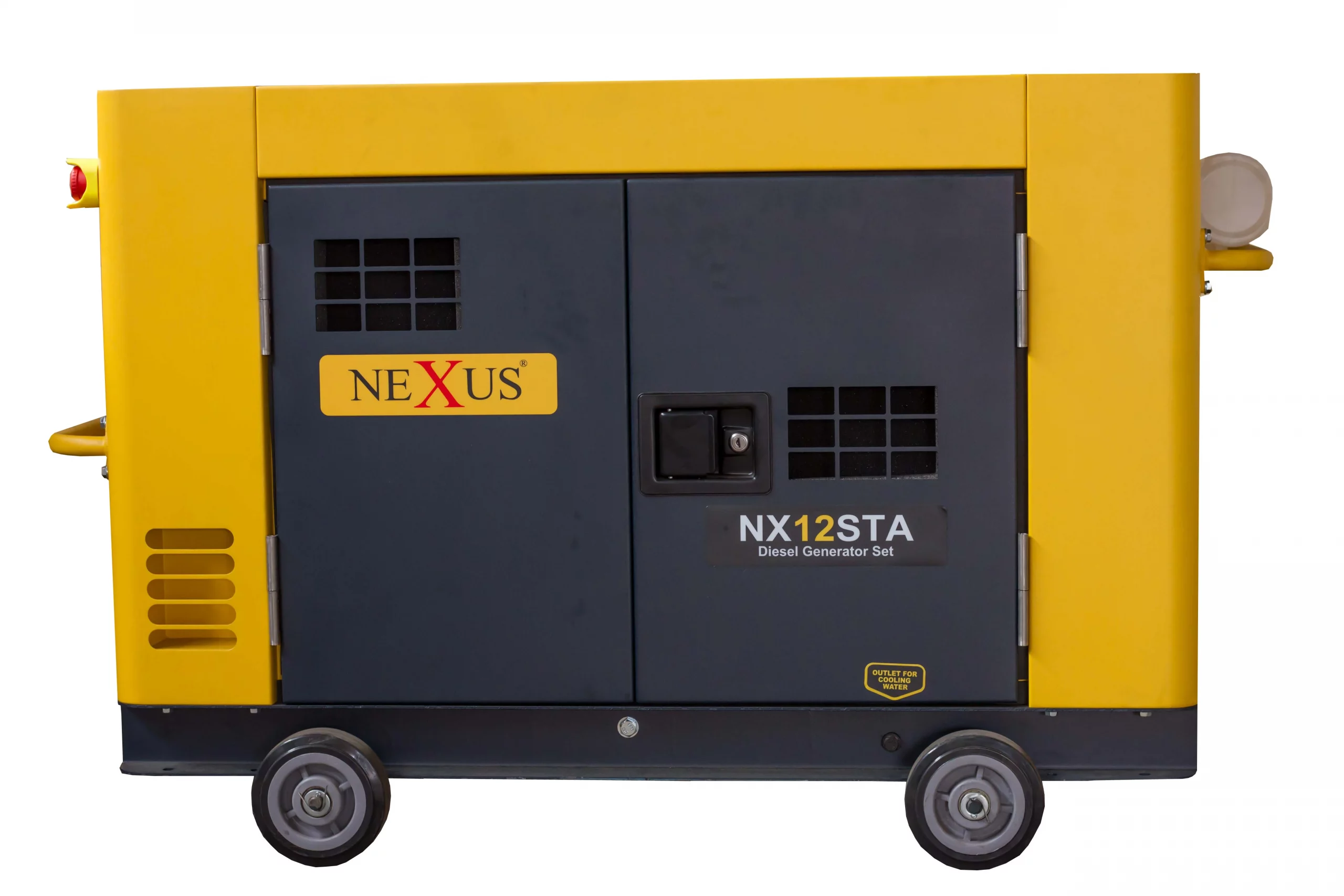

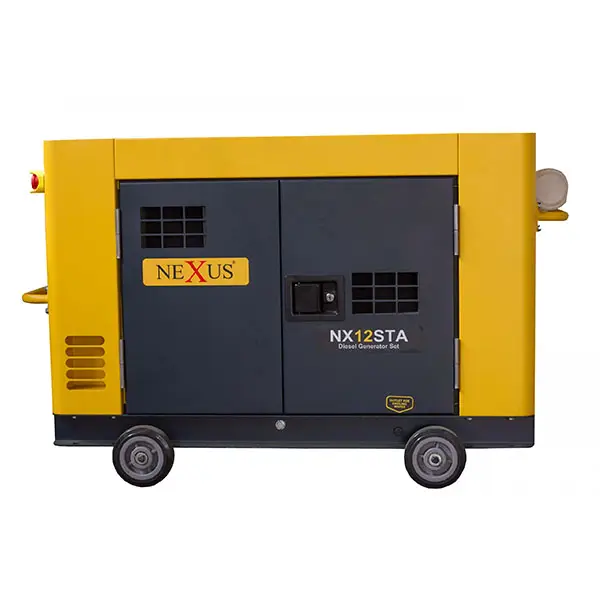

NEXUS 8.5KVA DIESEL 1PH SILENT GENERATOR

,

NEXUS 8.5KVA DIESEL 1PH SILENT GENERATOR

NEXUS 8.5KVA DIESEL 1PH SILENT GENERATOR

SKU: NX12STA Categories: , Tag:

NEXUS 8.5KVA DIESEL 1PH SILENT GENERATOR

Specifications

Model NX12STA
Generator set
Rated frequency Hz 50
Rated Power
kVA 8.5
kW 8.5
Max.power
kVA 9.5
kW 9.5
Rated voltage V 115/230
Rated current A 73.9/37
Rated rotation speed r/min 3000
Alternator
Generator Model KT12
pole 2
phase number Single Phase
Excitation mode Self-excitation and constant voltage (AVR)
Power factor cosΦ 1.0
Insulation grade F
Engine
Engine model RD2V80
Sturcture type V-twin, 4-stroke, swirl type, water-cooled
Boke x stroke mm 80×79
Displacement mL 794
Compression ratio 23:1
Rated power kW 12.5
Lubrication system Pressure splashed
Lube oil brand Above CD grade or SAE 10W-30, 15W-40
Lube capacity L 2.27
Starting system Electric starter
Charging genrator capacity 12V 36Ah
Fuel consumptioon ratio 285
Fuel type Diesel: 0#(Summer)-10#(Winter)-35#(chillness)
Genset
Panel type Digital panel
Output
Receptacle
two single-phase receptacles
Connection pole
available
DC12V output
NA
Noise level (7m) dB/A 72
Fuel tank capacity L 26
Overall dimension (L*W*H) mm 1350×650×760
Net weight kg 310
Packing
Package plywood case
Dimension (L*W*H) mm 1445×715×875
Gross Weight kg 325
