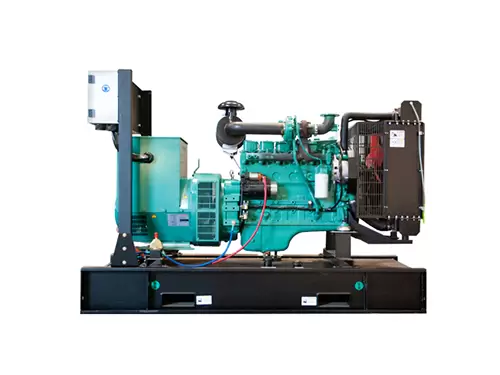

Cummins diesel engine, Model: 6CTA8.3-G. With the radiator at an ambient temperature 50 oC, fans are driven by a belt, with a safety guard, and With DC 24V charge alternator. Stamford Alternator Model: STAMFORD UCI 274F1, single bearing alternator; IP23 Protection, Insulation class H. Stand type control panel with many kinds of Display and Protection functions is equipped. Two 12V starter maintenance-free batteries. Power output MCCB is equipped. Accessory: A suit of ripple flex exhaust pipe; exhaust siphon, muffler; and a set of spare parts & Tools & Documents.
Specifications
| MODEL | SD-C160 |
| FREQUENCY (Hz) | 50 |
| RATED OUTPUT (kVA) | 160 |
| MAX OUT PUT (kVA) | 176 |
| RATED CURRENT (A) | 229.6 |
| RATED SPEED (rpm) | 1500 |
| PHASE NUMBER | Three |
| STARTING SYSTEM | 24V Electric Starter |
| LUB OIL BRAND | GTX SAE15W-40 |
| FUEL TYPE | Diesel |
| FUEL TANK CAPACITY(L) | 270 |
| ENGINE MODEL CUMMINS | 6CTA8.3-G |
| ALTERNATOR MODEL STANFORD | UC1274F |
| OPEN FRAME | OPEN FRAME |
| NET WEIGHT (KG) | 1500 |
| DIMENSIONS (LxWxH) (mm) | 2450x1050x1600 |
| SILENT TYPE SILENT TYPE | SILENT TYPE |
| NET WEIGHT (KG) | 2120 |
| DIMENSIONS (LxWxH) (mm) | 3500x1130x1700 |
| FIRST SERVICE (HRS) | 50 |
| 2nd SERVICE ONWARDS (HRS) | 200 |
| WARRANTY (MONTHS) | 12 Months Or 1500hrs |
