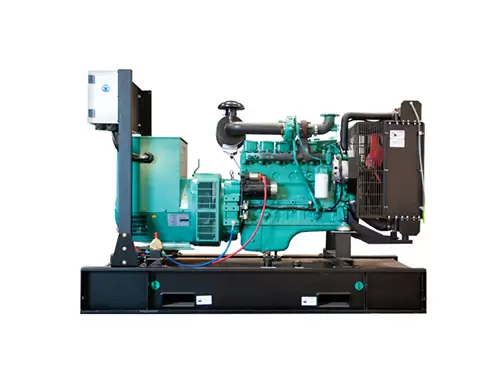

CUMMINS Diesel Engine, Model: 4B3.9-G. With a radiator at an ambient temperature of 50 C, fans are driven by a belt, with a safety guard, and with DC 24V charge alternator. STAMFORD Alternator Model: PI144E, single bearing alternator; IP23 protection, Insulation class H. Stand type control panel with many kinds of display and protection function is equipped. Two 12V starter maintenance-free batteries. Power output MCCB is equipped. Accessory: A suit of ripple flex exhaust pipe; exhaust siphon, muffler; and a set of spare parts & tools & documents.
Prime Power (PRP): Prime power is available for continuous 12-hours running, in accordance with GB/T2820, ISO8528; a 10% overload capability is available for a period of 1 hour within a 12-hours period of operation. Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power. No overload, and soundproof gensets only run under rating power.
Specifications
| MODEL | SD-C25 |
| FREQUENCY (Hz) | 50 |
| RATED OUTPUT (kVA) | 25 |
| MAX OUT PUT (kVA) | 28 |
| RATED CURRENT (A) | 36.1 |
| RATED SPEED (rpm) | 1500 |
| PHASE NUMBER | Three |
| STARTING SYSTEM | 12V Electric Starter |
| LUB OIL BRAND | GTX SAE15W-40 |
| FUEL TYPE | Diesel |
| FUEL TANK CAPACITY(L) | 155 |
| ENGINE MODEL CUMMINS | 4B3.9-G 4 Cycle |
| ALTERNATOR MODEL STANFORD | BCI-184F |
| OPEN FRAME | OPEN FRAME |
| NET WEIGHT (KG) | 830 |
| DIMENSIONS (LxWxH) (mm) | 1760x750x1320 |
| SILENT TYPE SILENT TYPE | SILENT TYPE |
| NET WEIGHT (KG) | 1400 |
| DIMENSIONS (LxWxH) (mm) | 2600x1100x1850 |
| FIRST SERVICE (HRS) | 50 |
| 2nd SERVICE ONWARDS (HRS) | 200 |
| WARRANTY (MONTHS) | 12 Months Or 1500hrs |
