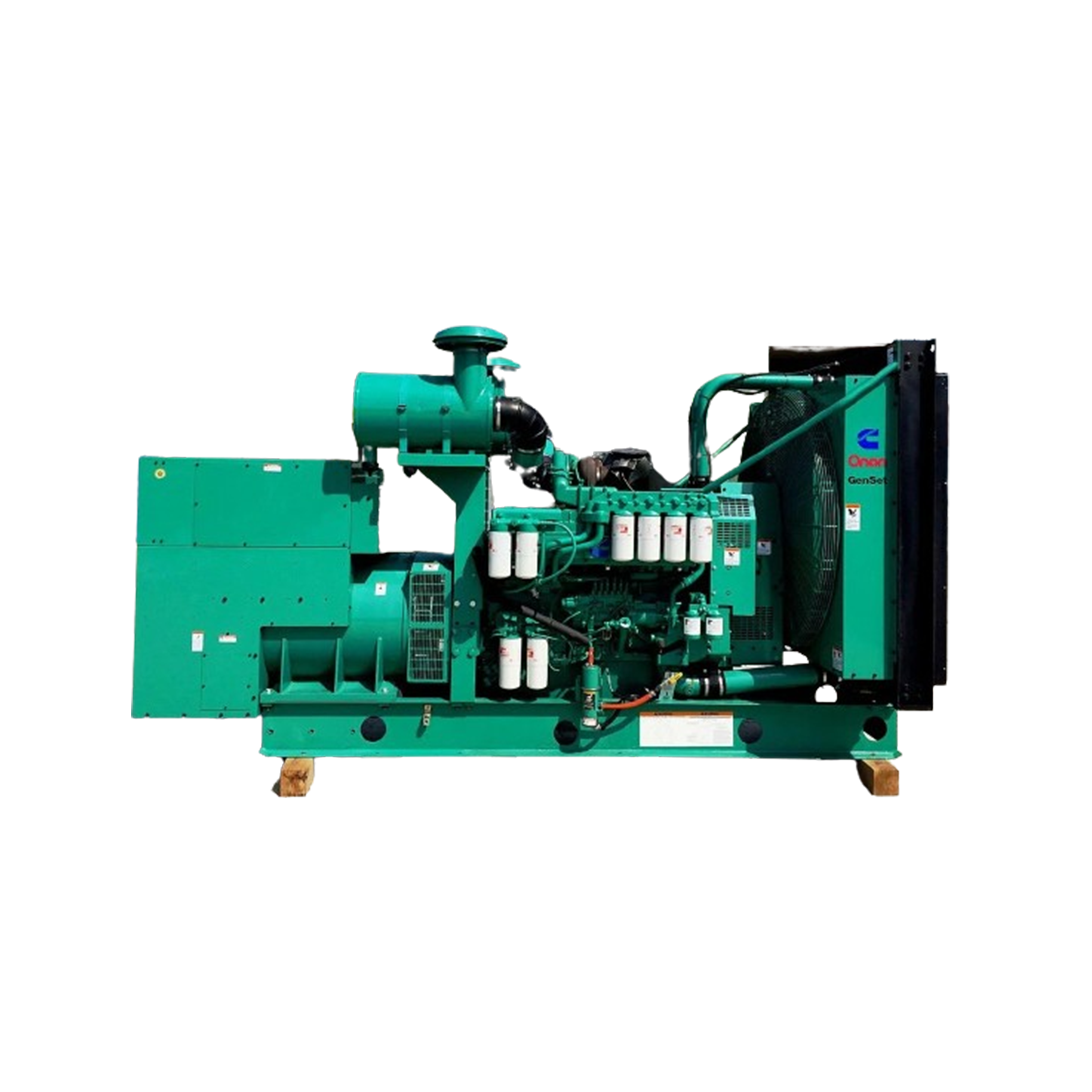

The structure is built-up, and the built-in residential muffler makes the noise lower. Exhaust guide plate and air channel for air intake&noise reduction are mounted within soundproof canopies. Outside Emergency Stop Button. Inside power Cathode switch. Outside Fuel Inlet. The Base Fuel tank is equipped, With lifting ear and forklift slots. Outside fuel inlet/return, outside lub oil and coolant drain. Noise level with no loads @ 1M is 75dB(A)
Specifications
| MODEL | SDC-60 |
| FREQUENCY (Hz) | 50 |
| RATED OUTPUT (kVA) | 60 |
| MAX OUT PUT (kVA) | 65 |
| RATED CURRENT (A) | 85.2 |
| RATED SPEED (rpm) | 1500 |
| PHASE NUMBER | Three |
| STARTING SYSTEM | 24V Electric Starter |
| LUB OIL BRAND | GTX SAE15W-40 |
| FUEL TYPE | Diesel |
| FUEL TANK CAPACITY(L) | 150 |
| ENGINE MODEL CUMMINS | 4BTA3.9-G |
| ALTERNATOR MODEL STANFORD | UCI224E |
| OPEN FRAME | OPEN FRAME |
| NET WEIGHT (KG) | 1040 |
| DIMENSIONS (LxWxH) (mm) | 2100x760x1500 |
| SILENT TYPE SILENT TYPE | SILENT TYPE |
| NET WEIGHT (KG) | 1520 |
| DIMENSIONS (LxWxH) (mm) | 2600x1000x1550 |
| FIRST SERVICE (HRS) | 50 |
| 2nd SERVICE ONWARDS (HRS) | 200 |
| WARRANTY (MONTHS) | 12 Months Or 1500hrs |
