| MODEL | 5KVA 48V |
|---|---|
| BATTERY INPUT DATA | |
| BATTERY TYPE | LEAD ACID/ LITHIUM ION |
| BATTERY VOLTAGE RANGE (V) | 40-60 |
| MAX. CHARGING CURRENT | 120 |
| MAX. DISCHARGING CURRENT | 120 |
| EXTERNAL TEMPERATURE SENSOR | YES |
| CHARGING CURVE | 3 STAGES/ EQUALIZATION |
| CHARGING STRATEGY FOR Li-ION BATTERY | SELF ADAPTATION TO BMS |
| PV STRING INPUT DATA | |
| MAX. DC INPUT (W) | 6500 |
| RATED PV INPUT VOLTAGE | 370 (125 – 500) |
| START-UP VOLTAGE (V) | 125 |
| MPPT VOLTAGE RANGE (V) | 150 – 425 |
| FULL LOAD DC VOLTAGE RANGE (V) | 300 – 425 |
| PV INPUT CURRENT (A) | 13 + 13 |
| MAX PV ISC (A) | 17 + 17 |
| NO. OF MPP TRACKERS | 2 |
| NO. OF STRINGS PER MPP TRACKER | 1 |
| AC OUTPUT DATA | |
| RATED AC OUTPUT ACTIVE POWER (W) | 5000 |
| MAX. AC OUTPUT ACTIVE POWER (W) | 5500 |
| AC OUTPUT RATED CURRENT (A) | 22.7/21.7 |
| MAX. AC OUTPUT CURRENT (A) | 25/23.9 |
| MAX. CONTINUOUS AC PASSTHROUGH (A) | 35 |
| PEAK POWER (OFFGRID) | 2 TIME OF RATED POWER, 10S |
| POWER FACTOR ADJUSTMENT RANGE | 0.8 LEADING TO 0.8 LAGGING |
| POWER FACTOR | 1 |
| OUTPUT FREQUENCY AND VOLTAGE | 50/60Hz;L/N/PE 220/230Vac (Single Phase) |
| GRID TYPE | Single Phase |
| TOTAL HARMONIC DISTORTION (THD) | <3% (OF NOMINAL POWER) |
| DC CURRENT INJECTION | <0.5% In |
| EFFICIENCY | |
| MAX EFFICIENCY | 97.60% |
| EURO EFFICIENCY | 96.50% |
| MPPT EFFICIENCY | 99.90% |
| PROTECTION | |
| INTERGRATED | PV Input Lighting Protection, Anti Islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current onitoring Unit, Output Over Current Ptotection, Output Shorted Protection, Surge Protection |
| OUTPUT OVER VOLTAGE PROTECTION | DC Type II/ AC Type III |
| CERTIFICATION AND STANDARDS | |
| GRID REGULATION | VDE4105, IEC61727/62116, VDE0126, AS4777.2, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 |
| SAFETY/EMC STANDARDS | IEC/EN61000-6-1/2/3/4, IEC/EN62109-1, IEC/EN62109/2 |
| GENERAL DATA | |
| OPERATING TEMPERATURE RANGE (°C) | -40-60°C, >45°C Derating |
| COOLING | SMART Cooling |
| NOISE (dB) | ≤30 dB |
| COMMUNICATION WITH BMS | RS485;CAN |
| WEIGHT (KG) | 20.5 |
| SIZE (MM) | 330W x 580H x 232D |
| PROTECTION DEGREE | IP65 |
| INSTALLATION STYLE | Wall-Mounted |
| WARRANTY | 5 Years |

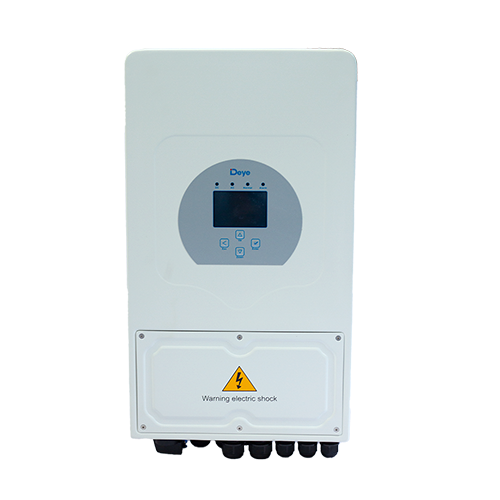

Deye Inverter 5KVA – 48V
