| MODEL | 8KVA 48V | |
|---|---|---|
| BATTERY INPUT DATA | ||
| BATTERY TYPE | LEAD ACID/ LITHIUM ION | |
| BATTERY VOLTAGE RANGE (V) | 40-60 | |
| MAX. CHARGING CURRENT | 190 | |
| MAX. DISCHARGING CURRENT | 190 | |
| EXTERNAL TEMPERATURE SENSOR | YES | |
| CHARGING CURVE | 3 STAGES/ EQUALIZATION | |
| CHARGING STRATEGY FOR Li-ION BATTERY | SELF ADAPTATION TO BMS | |
| PV STRING INPUT DATA | ||
| MAX. DC INPUT (W) | 10400 | |
| RATED PV INPUT VOLTAGE | 370 (125 – 500) | |
| START-UP VOLTAGE (V) | 125 | |
| MPPT VOLTAGE RANGE (V) | 150 – 425 | |
| FULL LOAD DC VOLTAGE RANGE (V) | 200 – 425 | |
| PV INPUT CURRENT (A) | 26+26 | |
| MAX PV ISC (A) | 44+44 | |
| NO. OF MPP TRACKERS | 2 | |
| NO. OF STRINGS PER MPP TRACKER | 2 | |
| AC OUTPUT DATA | ||
| RATED AC OUTPUT ACTIVE POWER (W) | 8000 | |
| MAX. AC OUTPUT ACTIVE POWER (W) | 8800 | |
| AC OUTPUT RATED CURRENT (A) | ||
| MAX. AC OUTPUT CURRENT (A) | ||
| MAX. CONTINUOUS AC PASSTHROUGH (A) | 50 | |
| PEAK POWER (OFFGRID) | 2 TIME OF RATED POWER, 10S | |
| POWER FACTOR ADJUSTMENT RANGE | 0.8 LEADING TO 0.8 LAGGING | |
| POWER FACTOR | 1 | |
| OUTPUT FREQUENCY AND VOLTAGE | 50/60Hz;L1/N(PE) 120/240Vac (Split Phase), 208Vac (2/3Phase), L/N/PE 220/230Vac, Single Phase | |
| GRID TYPE | Split Phase, 2/3Phase; Single Phase | |
| TOTAL HARMONIC DISTORTION (THD) | <3% (OF NOMINAL POWER) | |
| DC CURRENT INJECTION | <0.5% In | |
| EFFICIENCY | ||
| MAX EFFICIENCY | 97.60% | |
| EURO EFFICIENCY | 97.00% | |
| MPPT EFFICIENCY | 99.90% | |
| PROTECTION | ||
| INTERGRATED | PV Input Lighting Protection, Anti Islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current onitoring Unit, Output Over Current Ptotection, Output Shorted Protection, Surge Protection | |
| OUTPUT OVER VOLTAGE PROTECTION | DC Type II/ AC Type III | |
| CERTIFICATION AND STANDARDS | ||
| GRID REGULATION | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 021, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 | |
| SAFETY EMC/ STANDARDS | IEC/EN61000-6-1/2/3/4, IEC/EN62109-1, IEC/EN62109-2 | |
| GENERAL DATA | ||
| OPERATING TEMPERATURE RANGE (°C) | -40-60°C, >45°C Derating | |
| COOLING | SMART Cooling | |
| NOISE (dB) | ≤30 dB | |
| COMMUNICATION WITH BMS | RS485;CAN | |
| WEIGHT (KG) | 32 | |
| SIZE (MM) | 420W x 670H x 233D | |
| PROTECTION DEGREE | IP65 | |
| INSTALLATION STYLE | Wall-Mounted | |
| WARRANTY | 5 Years | |

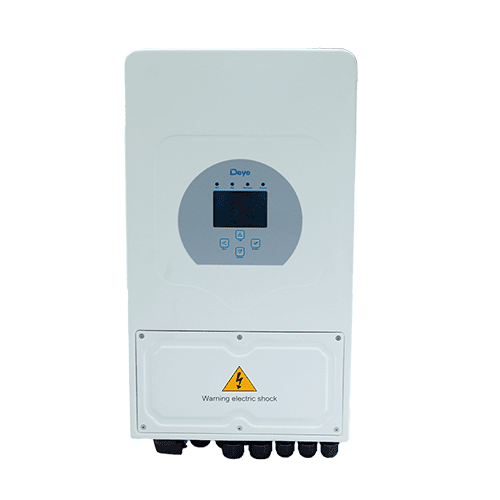

Deye Inverter 8KVA – 48V
Deye Inverters, Inverters, Solar
