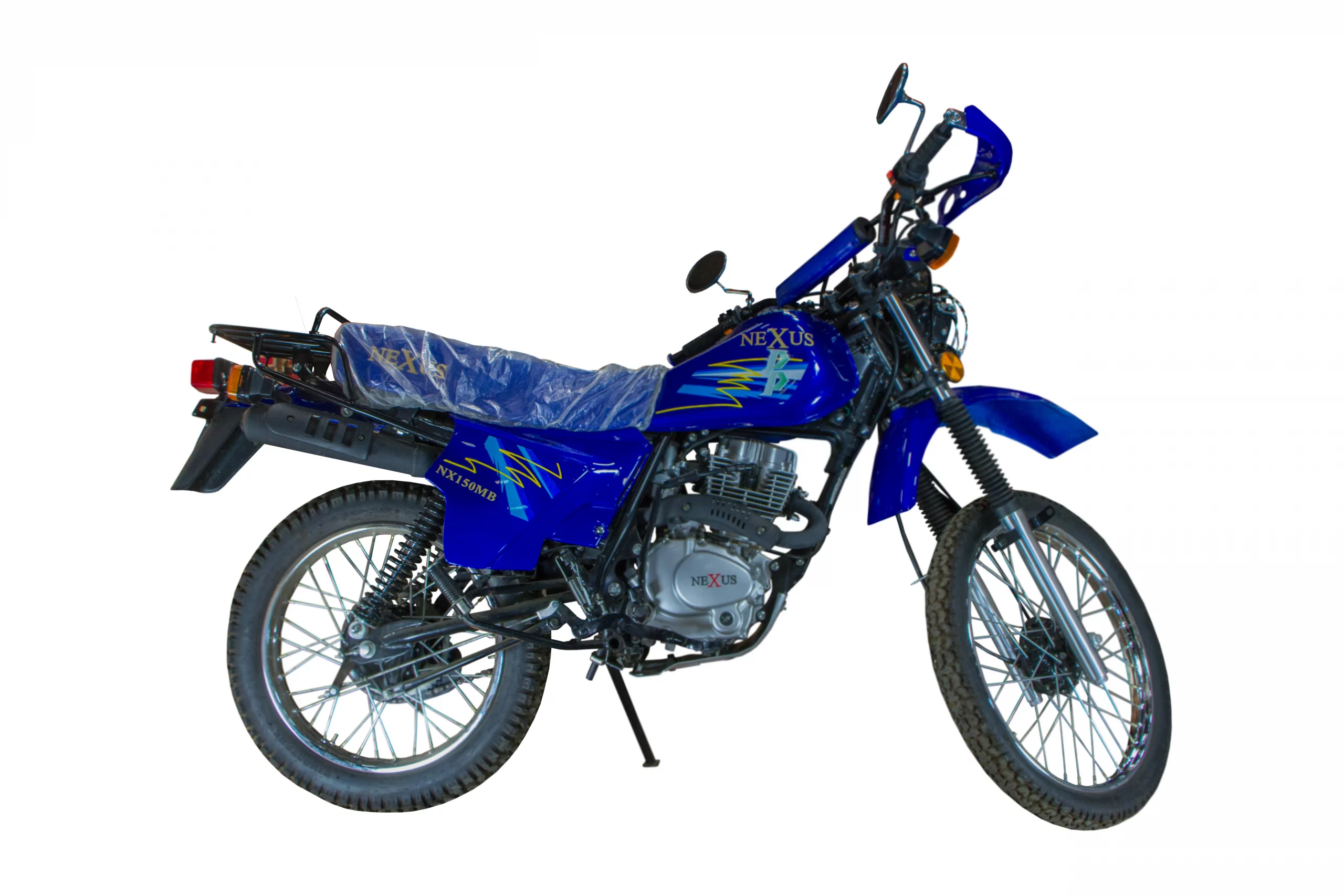

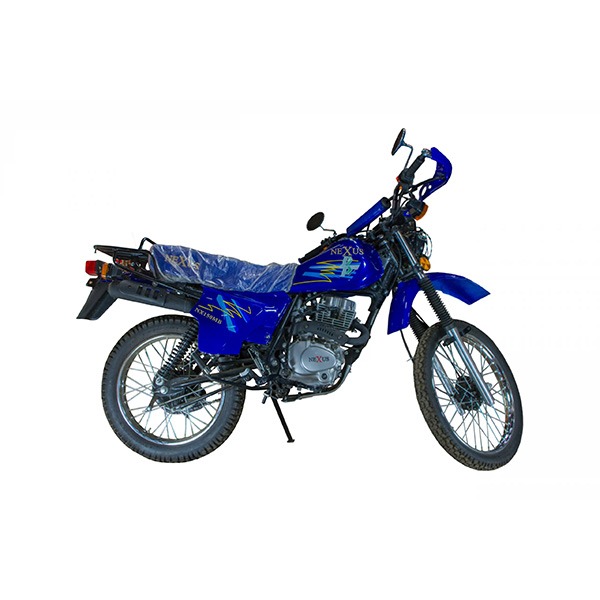

Nexus Motor Bike 150cc Motor Bike is not only fuel-efficient but is also cheap to maintain and has everyday rideability, it also has ABS – an automatic braking system.
Specifications
| Technical | |
| MODEL | OFF ROAD 150CC |
| Engine | |
| Engine Type: | CG150, 162FMJ, Air-cooled, 1-cylinder, 4-stroke, |
| Displacement (ml): | 149.4 |
| Bore X Stroke (mm): | 62.0×49.5 |
| Compression Ratio: | 9.0:1 |
| Max. Power (kw/r/min) | 8.3/8500 |
| Max. Torque (N.m/r/min): | 10.5/7500 |
| Max. Speed (Km/h): | |
| Lubrication: | Pressure, splash |
| Clutch Type: | Manual |
| Ignition: | C.D.I |
| Starting System: | Electric/Kickstart |
| Transmission System: | Chain drive |
| CHASSIS | |
| Front Suspension: | Hydraulic & Spring |
| Rear Suspension: | Double |
| Chassis structure: | Steel |
| Rear fork： | Square |
| Front Brake: | Disc Brake |
| Rear Brake: | Drum Brake |
| Front Tire: | 2.75-21 |
| Rear Tire: | 4.10-18 |
| Muffler： | Black |
| Steering Head Angle: | ≤48° |
| Battery: | 12V6.5Ah |
| Body Cover: | ABS |
| DIMENSIONS | |
| L X W X H (mm): | 2080x830x1240 |
| Seat Height (mm): | 870 |
| Wheelbase (mm): | 1320 |
| Min. Ground Clearance (mm): | 285 |
| Max. Permissionable Weight (kg): | |
| Max. Climbing (°): | ≥22 |
| Brake Distance (m/20km): | ≤ 7 |
| Max. Speed (Km/h): | ≥90 |
| Rider Capacity: | |
| Dry. Weigth (kg): | 117 |
| Engine Oil (L): | |
| Fuel Tank Capacity (L): | |
| OTHERS | |
| Packing Size (mm): | 1820×465×880 |
| Packing Weight (kg): | 137 |
