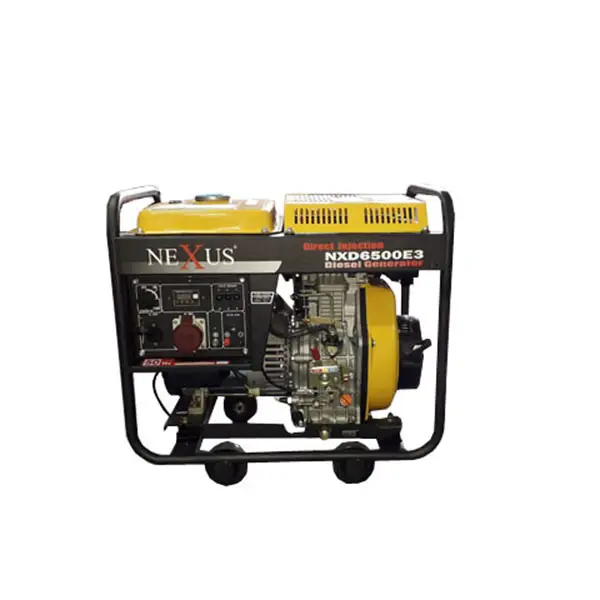

This 3-phase open-frame 5kva Nexus generator provides greater power density than single phases. It is suitable for commercial and production sites as most of them uses 3 phase wiring.
Specifications
| MODEL | NX6500E3 |
| FREQUENCY (Hz) | 50 |
| RATED OUTPUT (kVA) | 4.5 |
| MAX OUT PUT (kVA) | 5 |
| RATED CURRENT (A) | 7.9 |
| RATED SPEED (rpm) | 3000 |
| PHASE NUMBER | 3 |
| POWER FACTOR (Cos*) | 1 |
| STARTING SYSTEM | ELECTRIC STARTER |
| LUB OIL BRAND | GTXSAE15W |
| FUEL TYPE | Diesel |
| FUEL TANK CAPACITY(L) | 13 |
| ENGINE MODEL | AIR COOLED, SINGLE CYLINDER,VERTICAL,FOUR STROKE,DIRECT INJECTION |
| NOISE LEVEL AT 7M (dBA) | 79 |
| NET WEIGHT (KG) | 100 |
| DIMENSIONS (LxWxH) (mm) | 720*480*640 |
| RECOMMENDED CONTINUOUS RUN TIME | 6.5HRS |
| ENGINE TYPE | |
| STRUCTURE TYPE | OPEN FRAME |
| FIRST SERVICE (HRS) | 20HRS |
| 2nd SERVICE ONWARDS (HRS) | 50HRS |
| WARRANTY (MONTHS) | 6 MONTHS |
