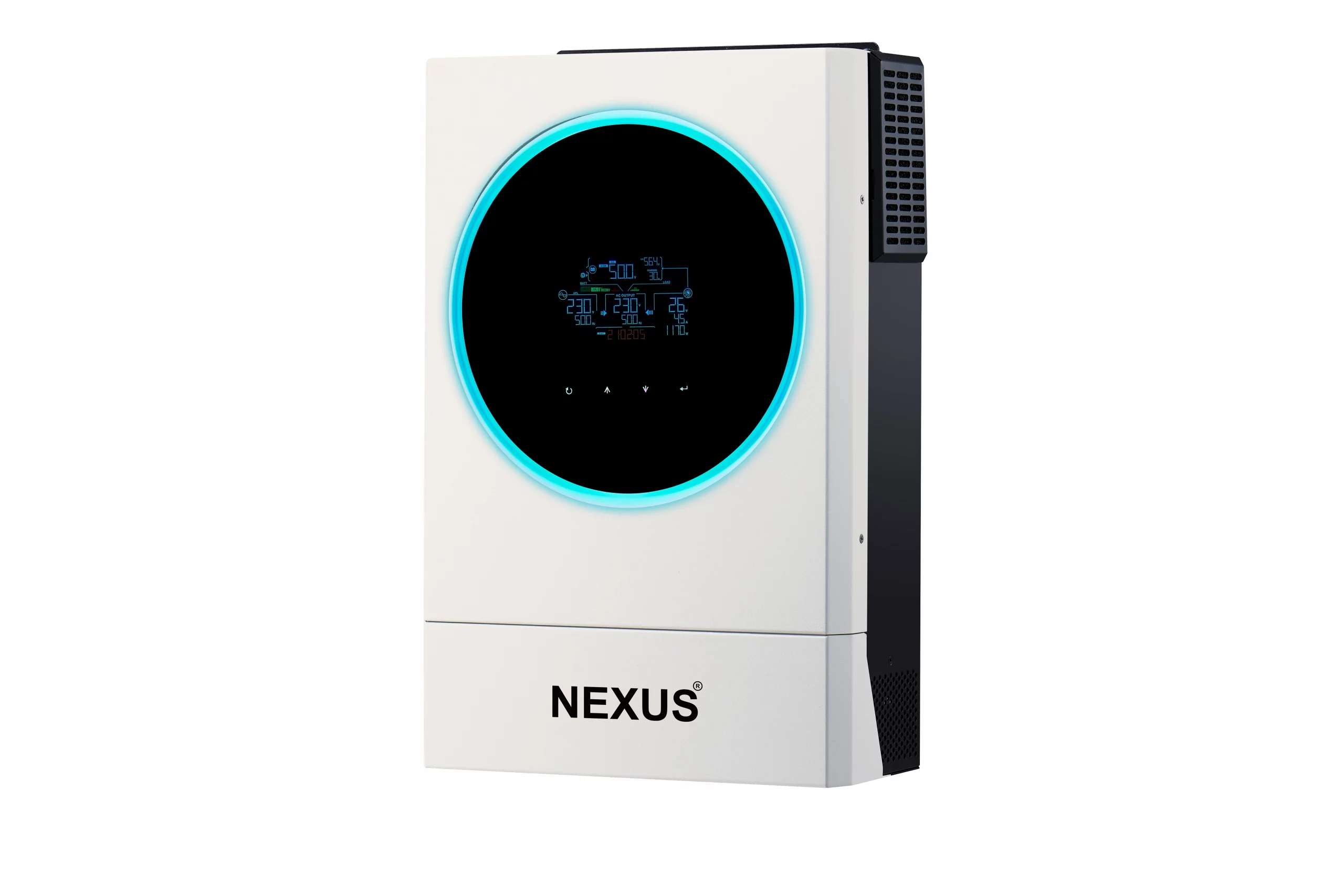

NEXUS MKS OFF-GRID INVERTER 3.6KVA 48V
Specifications
| MODEL | MKS3.6KVA |
| Rated Power | 3600VA/3600W |
| Parallel Capacity | |
| INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) 90-280VAC (For Home Computers) |
| Frequency Range | 50Gz/60Hz (Auto Sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230 VAC +/- 5% |
| Surge Power | |
| Overload Capacity | 5s@≥150% load; 10s@110% ̴150% load: 100ms @≥200% load |
| Efficiency (Peak) | 93% |
| Transfer Time | 10ms (For Personal Computers); 20ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| BATTERY | |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| Overcharge Protection | 66VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 5000W |
| MPPT Range @ Operating Voltage | 120 ̴ 430VDC |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum Solar Charge Current | 100A |
| Maximum AC Charge Current | 100A |
| Maximum Charge Current | |
| PHYSICAL | |
| Dimensions [DxWxH (mm)] | 140x295x468 |
| Net Weight (Kgs) | 11 |
| Communication Interface | USB/RS232/RS485/Wifi/Dry-Contact |
| ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non- Condensing) |
| Operating Temperature | -10˚C to 50˚C |
| Storage Temperature | -15˚C to 60˚C |
| NB: PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE | |
