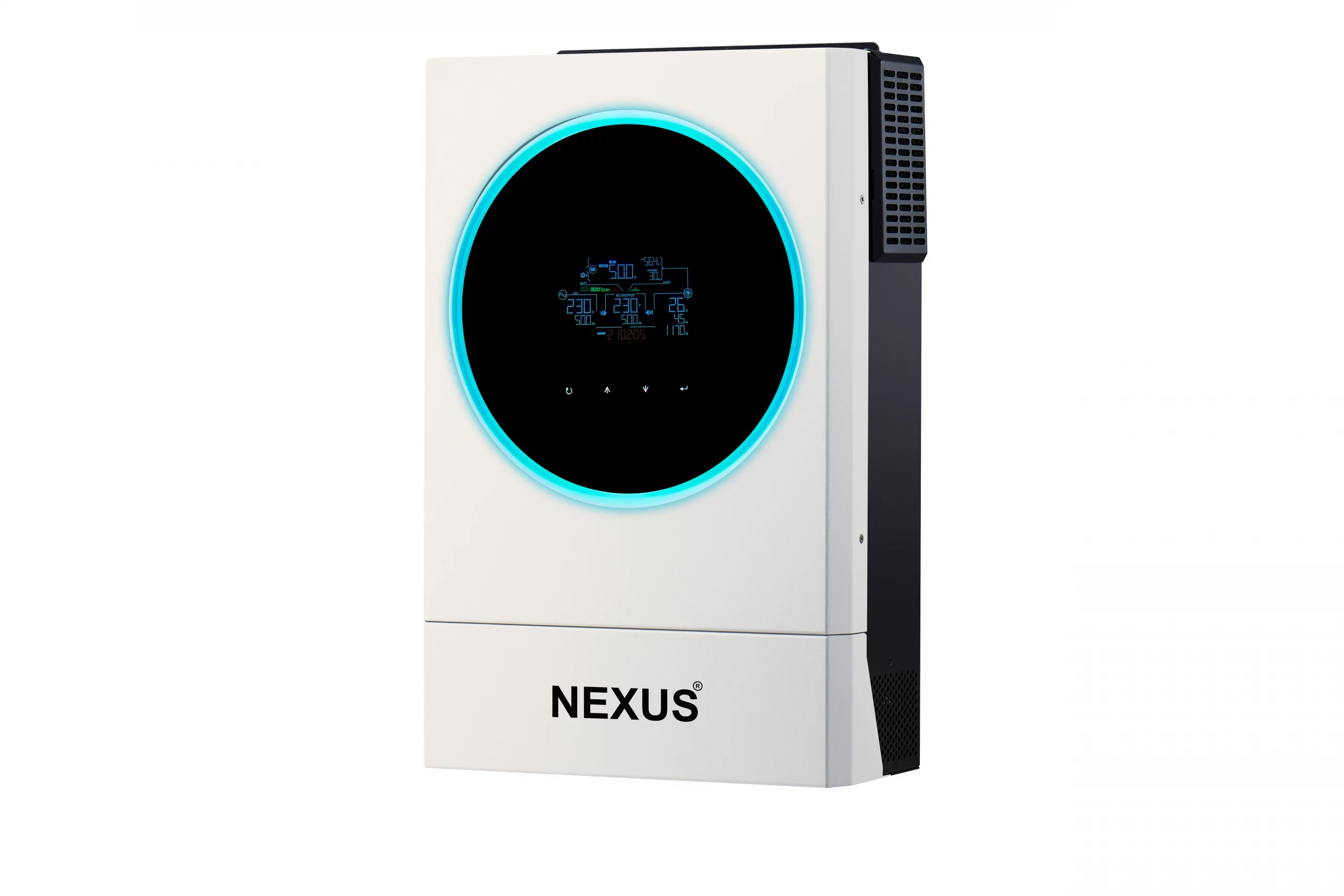

NEXUS MKS OFF GRID INVERTER 5.6KVA 48V

, ,

NEXUS MKS OFF GRID INVERTER 5.6KVA 48V

NEXUS MKS OFF GRID INVERTER 5.6KVA 48V

SKU: MKS5.6KVA Categories: , , Tag:

NEXUS MKS OFF GRID INVERTER 5.6KVA 48V

Specifications

MODEL MKS5.6KVA
Rated Power 5600VA/5600W
Parallel Capacity
INPUT
Voltage 230VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280VAC (For Home Computers)
Frequency Range 50Gz/60Hz (Auto Sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 231 VAC +/- 5%
Surge Power
Overload Capacity 5s@≥150% load; 10s@110% ̴150% load: 100ms @≥200% load
Efficiency (Peak) 93%
Transfer Time 10ms (For Personal Computers); 20ms (For Home Appliances)
Waveform Pure Sine Wave
BATTERY
Battery Voltage 48VDC
Floating Charge Voltage 54VDC
Overcharge Protection 66VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT
Maximum PV Array Power 6000W
MPPT Range @ Operating Voltage 121 ̴ 430VDC
Maximum PV Array Open Circuit Voltage 450VDC
Maximum Solar Charge Current 120A
Maximum AC Charge Current 120A
Maximum Charge Current
PHYSICAL
Dimensions [DxWxH (mm)] 140x295x469
Net Weight (Kgs) 12
Communication Interface
USB/RS232/RS485/Wifi/Dry-Contact
ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non- Condensing)
Operating Temperature -10˚C to 50˚C
Storage Temperature -15˚C to 60˚C
NB: PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
