Nexus Off Grid 3kva Inverter 24v Naxvm300024+

, ,

Nexus Off Grid 3kva Inverter 24v Naxvm300024+

Nexus Off Grid 3kva Inverter 24v Naxvm300024+

SKU: NAX3KVA Categories: , , Tag:

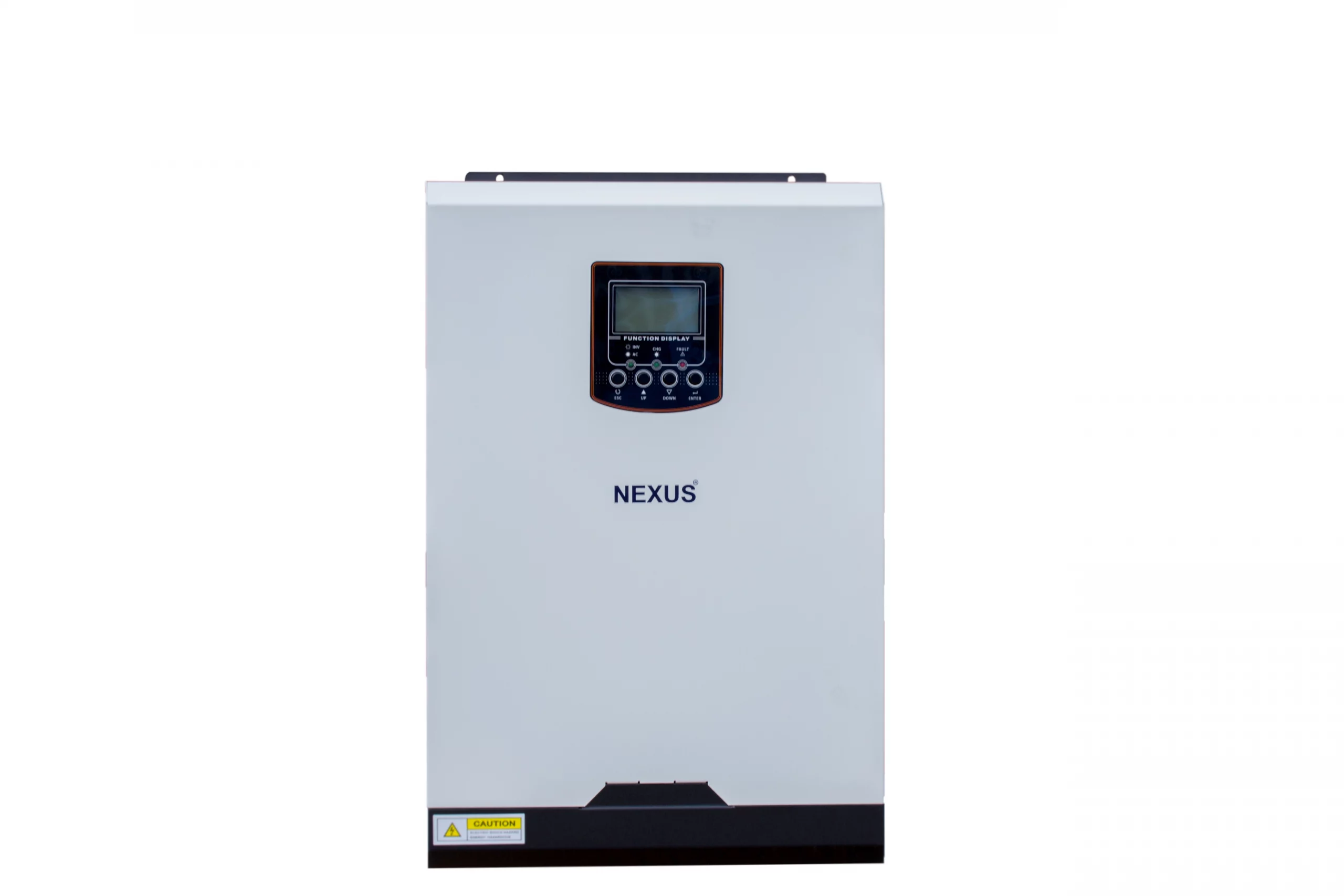

Nexus Off Grid 3kva Inverter 24v Naxvm300024+

Specifications

Model 3kva 24v
Related Power 3000VA/3000W
INPUT
Voltage 230VAC
Selectable Voltage Range 170-280VAC (For Personal Computers) ; 90-280VAC (For Home Appliances)
Frequency Range 50Hz/60Hz (Auto Sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC± 5%
Surge Power 6000VA
Efficiency (Peak) 90% – 93%
Transfer Time 10ms (For Personal Computers) ; 20ms (For Home Appliances)
Waveform Pure Sine Wave
BATTERY
Battery Voltage 24VDC
Floating Charge Voltage 27VDC
Overcharge Protection 33VDC
SOLAR CHARGER & AC CHARGER
Solar Charge Type MPPT
Maximum PV Array Open Circuit Voltage 145VDC
Maximum PV Array Power 1500W
MPP Range @ Operating Voltage 30 – 115VDC
Maximum Solar Charge Current 60A
Maximum AC Charge Current 60A
Maximum Charge Current 120A
PHYSICAL
Dimension, D x W x H (mm) 100 x 300 x 440
Net Weight (kgs) 9.5
Communication Interface USB/RS234
ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non Condensing)
Operating Temperature ­10°C to 50°C
Storage Temperature ­15°C to 60°C
