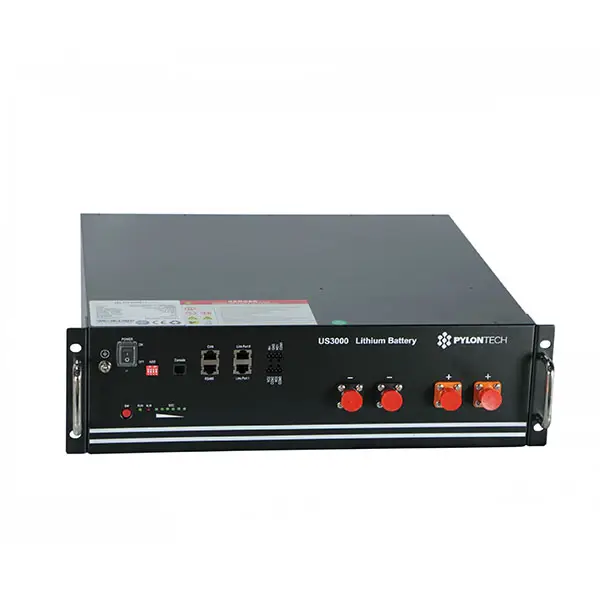

Pylontech Lithium Battery Us3000c 74ah 48v 3.5kwh

Description

The US3000C is a 48V low voltage hybrid energy storage system using solar batteries from Pylontech, which utilizes their proprietary lithium iron phosphate cells to guarantee optimal safety and longevity. Their custom-built battery management system safeguards the cell against irregularities in temperature, current, voltage, state of charge, and state of health.

Pylontech’s US3000C lithium battery is a new version of the already well-known US3000. Capacity 3.55 kWh US3000C’s simplicity and modularity make it suitable for small and large capacity storage systems that can scale to meet current and future energy demands.

Features

• Build-in soft-start function able to reduce current strike when the inverter

• NEW: Dual active protection on BMS level.

• NEW: Automatic address setting when connect in multi-group.

• Support wake-up by 5~12V signal from RJ45 port.

• NEW: Enable 95% depth of discharge, available for the inverter which completely follows Pylontech latest protocol to operate.

• The module is non-toxic, non-polluting, and environmentally friendly

• Cathode material is made from LiFePO4 with safety performance and long cycle life

• Battery management system (BMS)has protection functions including over-discharge, over-charge, over-current, and high/low temperature

• The system can automatically manage the charge and discharge state and balance voltage of each cell

• Flexible configuration, multiple battery modules can be in parallel for expanding capacity and power

• Adopted self-cooling mode rapidly reduced system’s entire noise

• The module has less self-discharge, up to 6 months without charging it on the shelf, no memory effect, excellent performance of shallow charge and discharge
